Full Machine Solutions

01 / 03

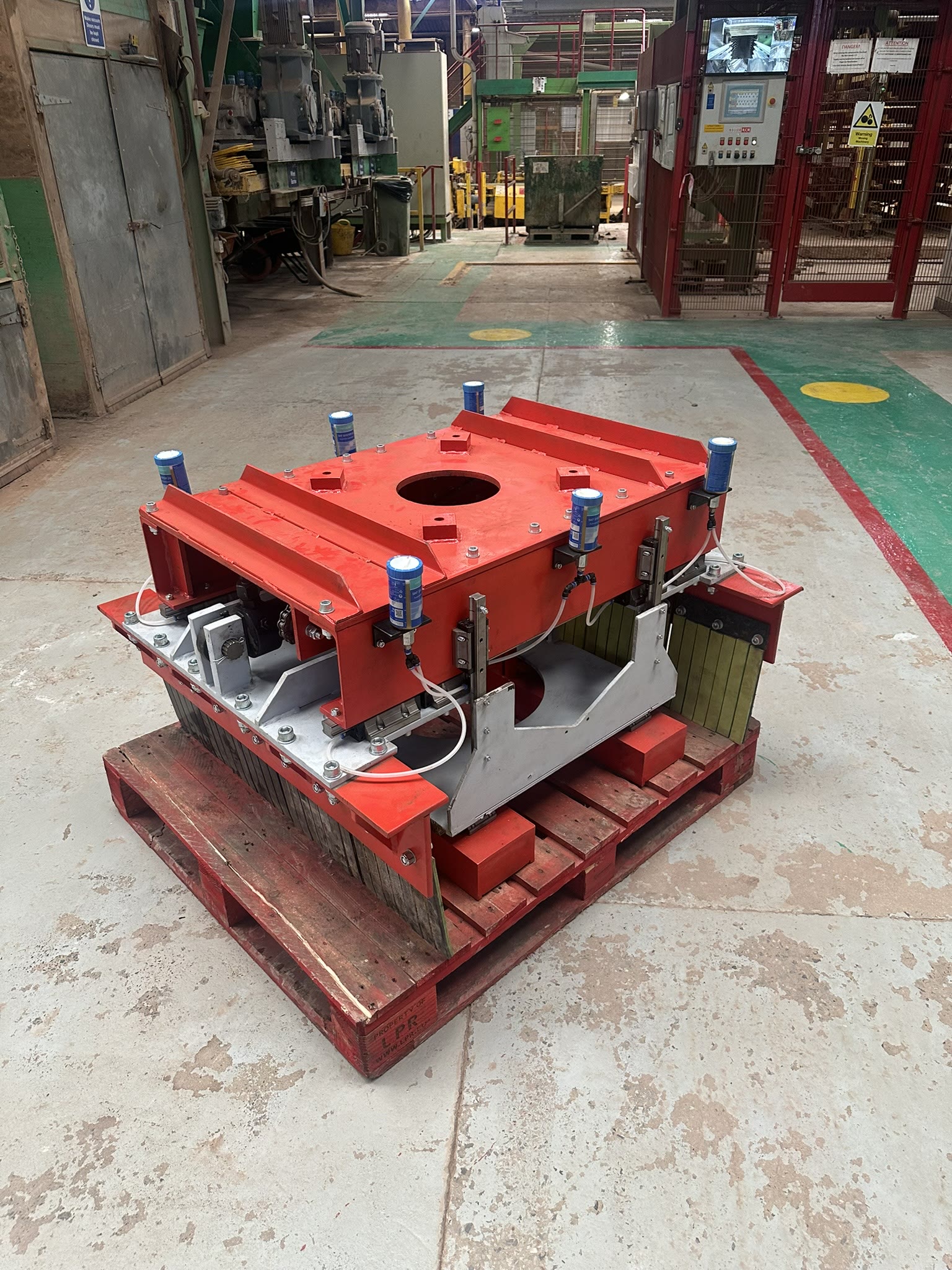

Pack Forming Head v1 + v2

KELLER pack forming head replacement — v1 & v2.

• A huge upgrade in strength and rigidity, with a 12 mm-thick frame.
• 30 mm SHSLM linear bearings.
• Uses the original 80 mm hydraulic ram, but designed with space to accommodate a 200 mm air cylinder.
• Timing chains for perfect repeatability.
• V1 uses the original KELLER finger assembly; V2 uses a modern spring-steel gripper system.
• V1 uses floating tongues to create the lifting gap; V2 uses cross-slides for better repeatability and accuracy.

02 / 03

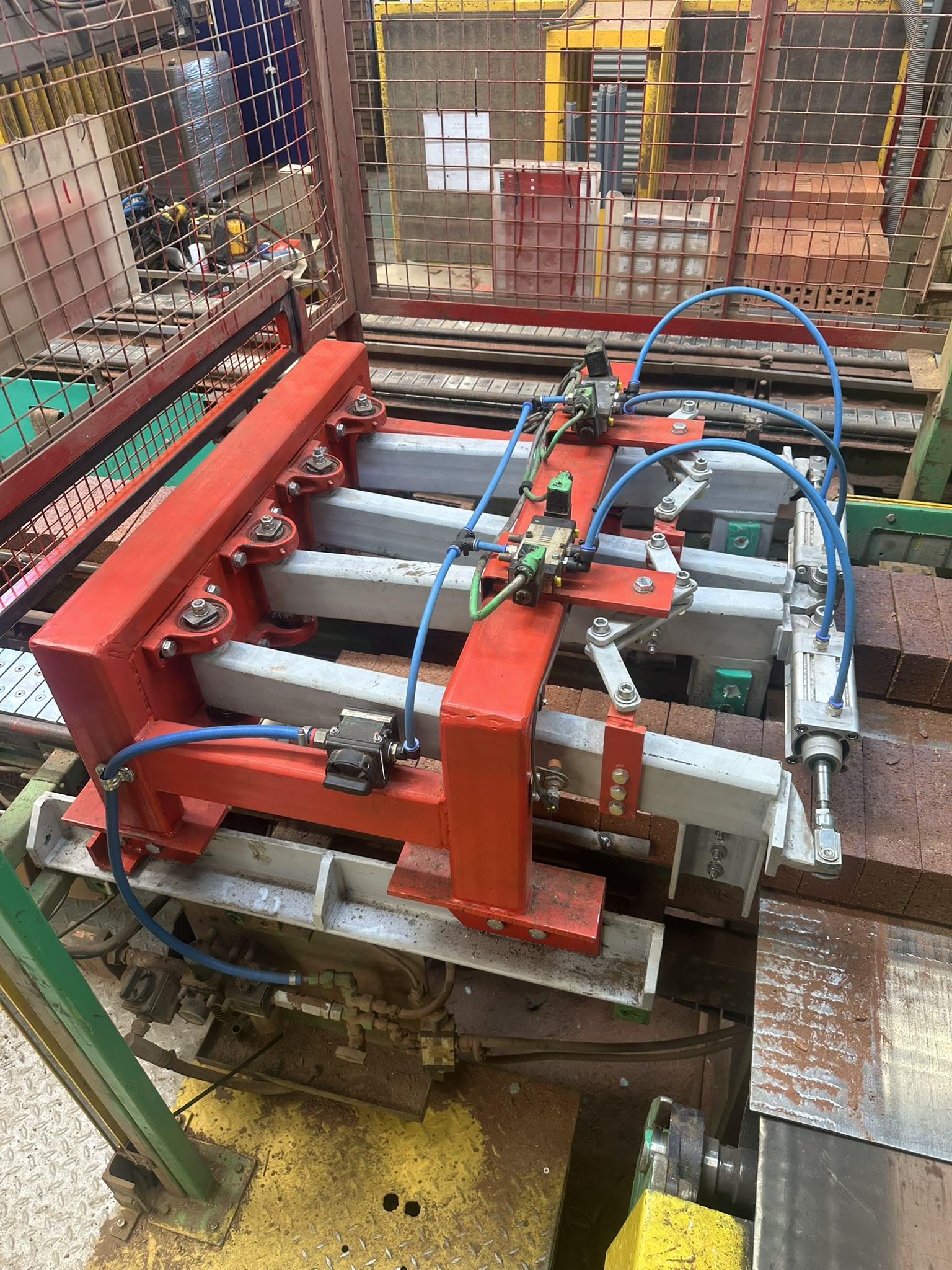

Plate Chain Clamps

KELLER plate chain clamps replacement.

• Heavy-gauge steel RHS.
• Accurate design — minimal movement and wear.
• Timing links for repeatable open/close cycles.
• New gripper-pad technology — replacement cycles extended from 2 days to 2 months.
• Both lines replaced within a 12-hour window.
• 12-monthly maintenance schedule.

03 / 03

Further Machines

Machines designed to be fabricated and fitted.
